Description

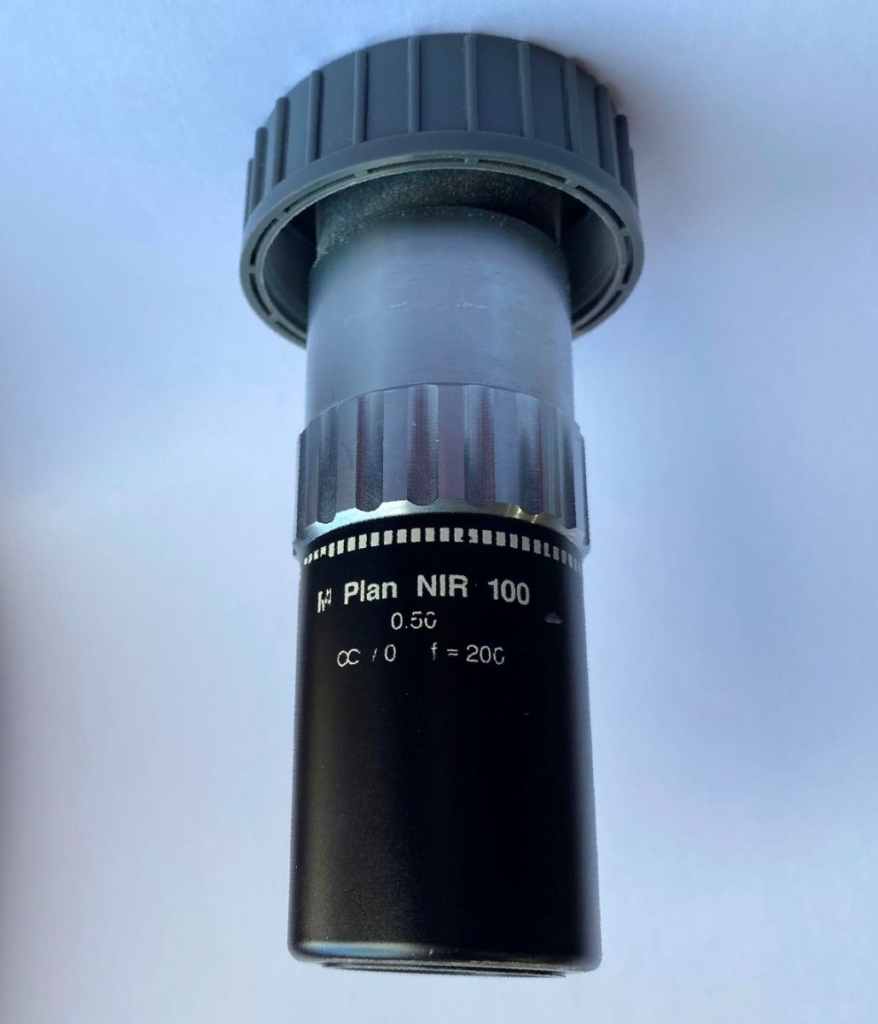

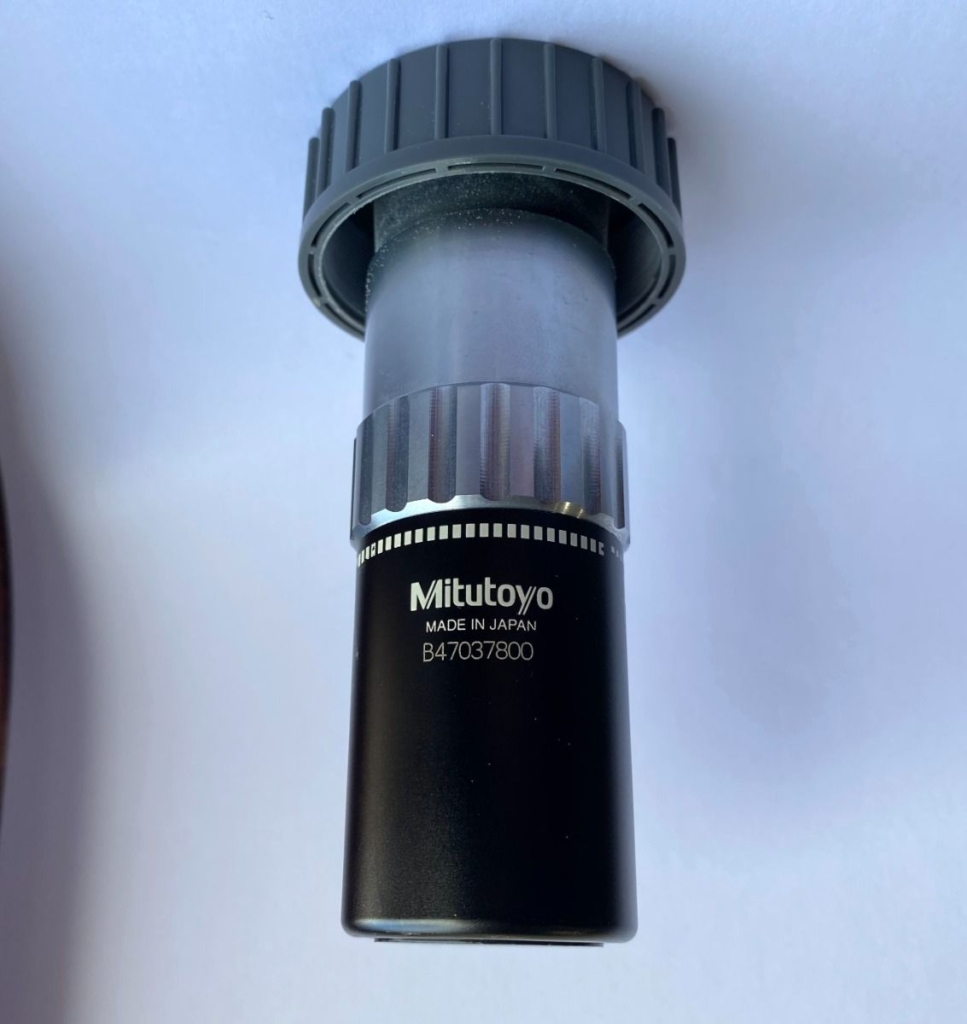

Mitutoyo M Plan NIR-100x Objective 378-826
Long working distance, Visible to NIR applications, color corrected from 480nm-1800n, long working distance of 12.0mm, 0.5NA, 100x magnification, pn 378-826
Suitable for Bright Field Inspection and Laser Applications
Magnification:100X
Numerical Aperture NA:0.50
Compatible Tube Lens Focal Length (mm):Focal Length: 200mm
Compatible Cover Glass Thickness (mm):N/A
Depth of Field (μm):1.10
Design Wavelength DWL (nm):532, 1064
Horizontal Field of View, 1/2″ Sensor:0.06mm
Field of View, 18 Diameter Field Eyepiece (mm):0.18
Horizontal Field of View, 2/3″ Sensor:0.09mm
Field of View, 24 Diameter Field Eyepiece (mm):0.24
Focal Length FL (mm):2.00
Length excluding Threads (mm):83.0
Manufacturer:Mitutoyo
Maximum Sensor Format:2/3″
Maximum Diameter (mm):
Model Number:378-826-15
Mounting Threads:M26 x 36 TPI
Note:Example Application: cutting and trimming of semiconductor wafer and circuits
Parfocal Length (mm):95
Resolving Power (μm):0.6
Style:Infinity Corrected
Type:Microscope Objective
Weight (g):335.00
Working Distance (mm):12.0
Wavelength Range (nm):480 – 1800
Immersion Liquid:N/A
Operating Temperature (°C):-5 to +45
