Description

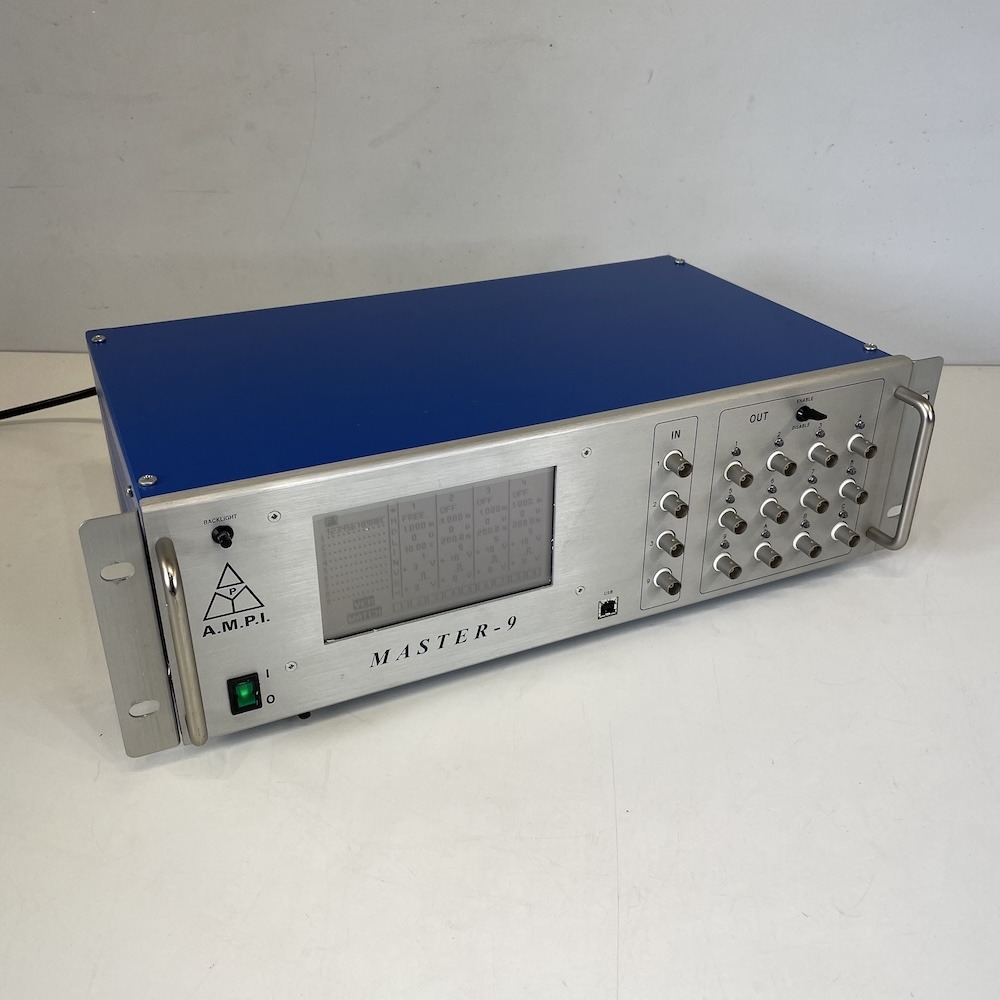

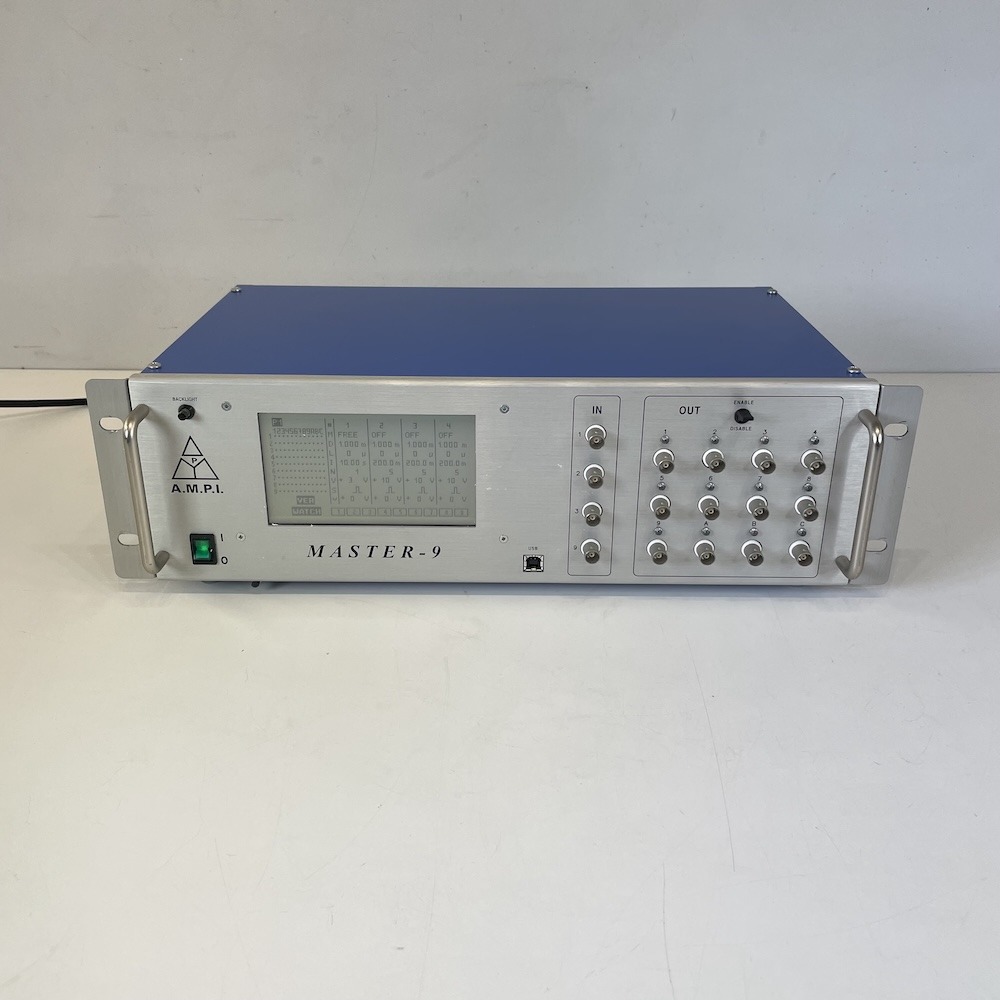

Programmable Pulse Stimulator 9 Channel A.M.P.I. Master 9
The Master-9 is designed to meet a broad range of neurophysiological stimulation requirements.
- 9 channels with repetitive, single, twin and train outputs
- Monophasic and biphasic pulses and ramp outputs.
- All channels can be operated independently or synchronized to produce complex patterns of pulses (paradigms).
- Use some channels to stimulate your preparation, while other channels to trigger other instruments (oscilloscope, PC, etc.) in synchronization with the stimulation.
- Wide range of time intervals between pulses/trains: from 40 µs (25000 PPS) to 3999 s (more than an hour!)
- Modification on-the-fly: modify parameters without stopping the stimulation. For example, while stimulating, switch the stimulation rate from one range to another (e.g. from 98 PPS to 102 PPS).
- Simple switch-off stimulation: important for cases where immediate stimulation cut off is required.
- Scheduler: Use the powerful scheduler to trigger channels, modify parameters and switch between experiments at scheduled times.
A stand-alone stimulator that can also be programmed via a PC.

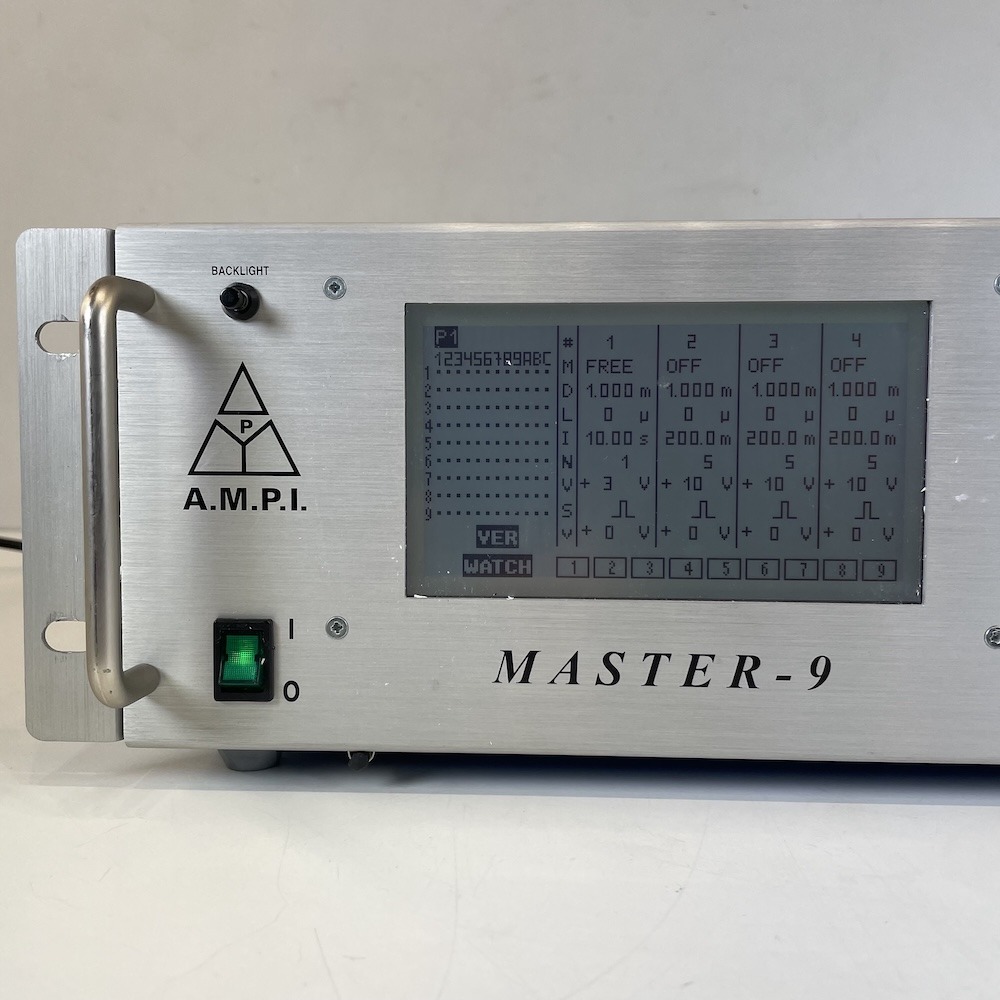

As a stand-alone unit: All parameters are set by the front panel touch screen. You can easily switch between 9 stored independent experiments. Each experiment uses all channels.
When connected to a PC: You can set all parameters by the front panel touch screen or by your PC.
The PC can also modify Master-9 parameters in accordance with experiment feedback and upload/download new experiments. The communication is bidirectional, through a standard USB interface.
