Description

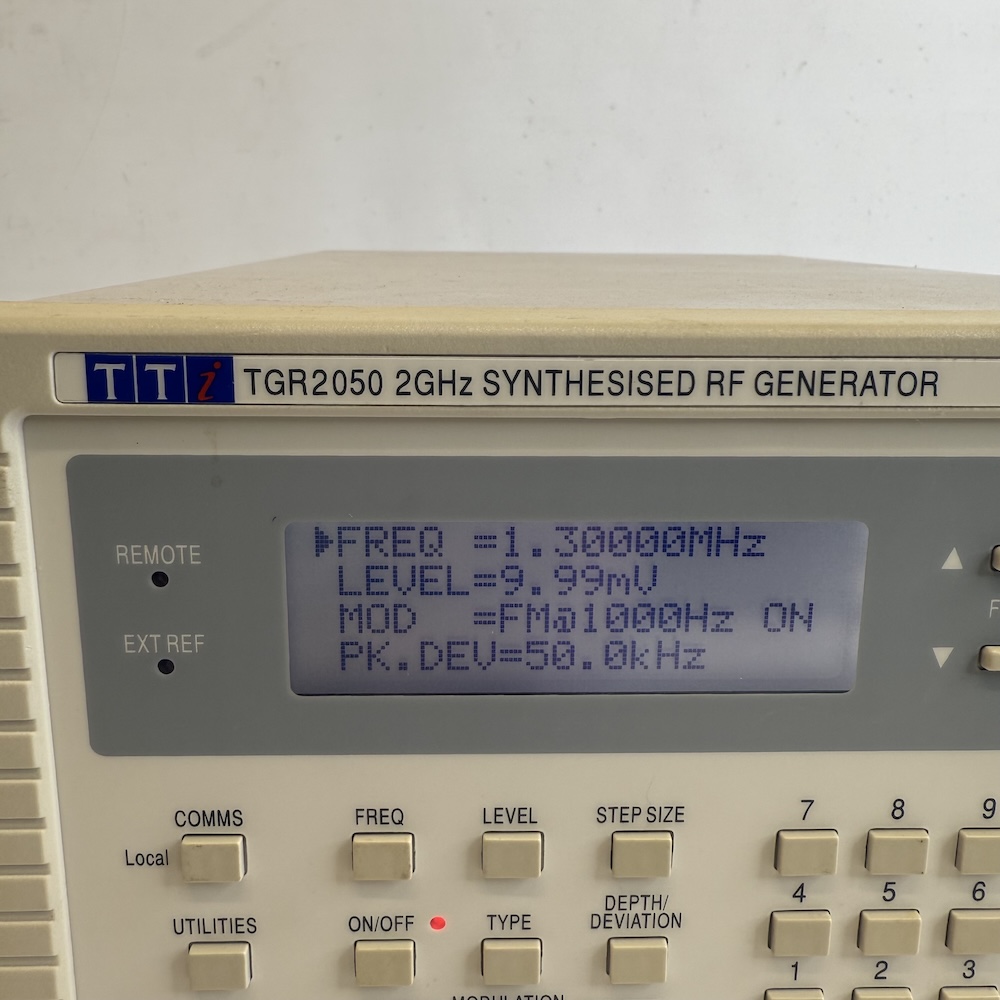

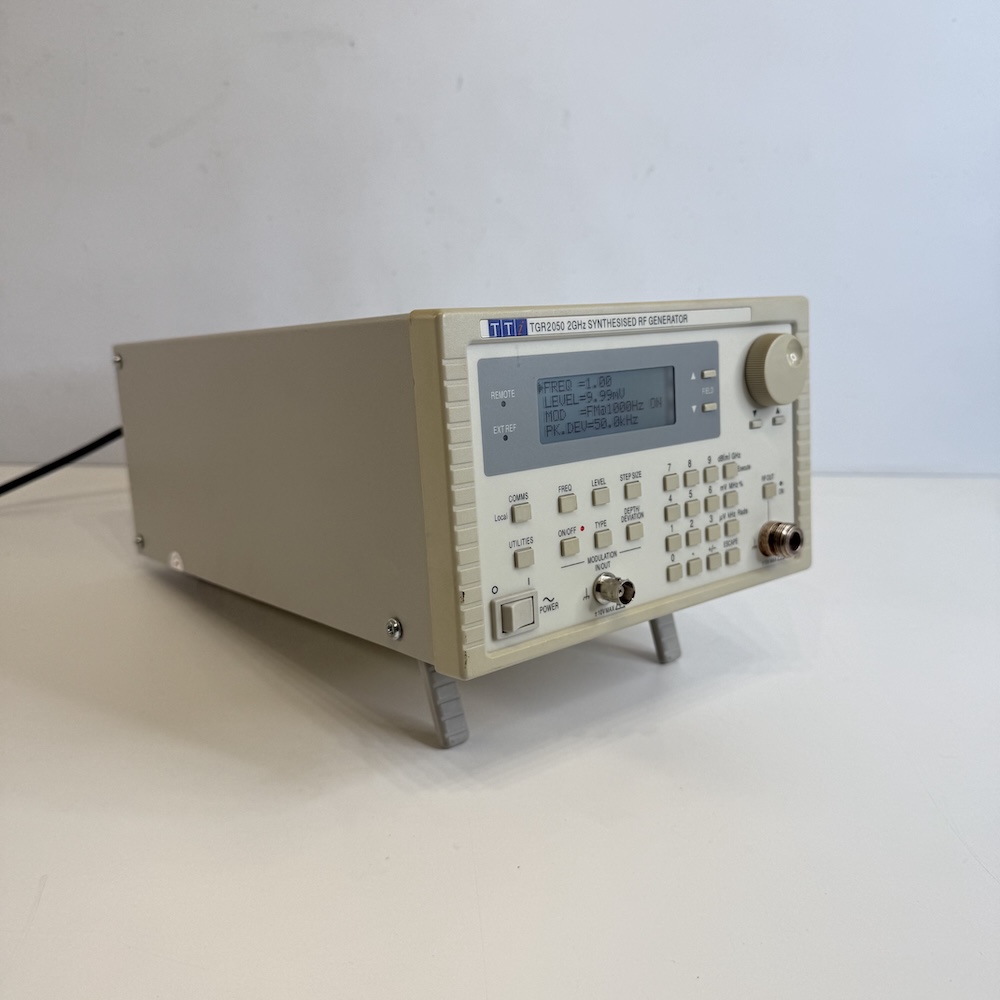

TTi TGR2050 2GHz Synthesised RF Generator
The TGR2050 offers a wide frequency range with a setability of 10Hz. It has 1ppm internal stability and can be locked to an external standard. Modulation facilities of FM, Phase and AM are included.
- 50kHz to 2000MHz frequency range
- 10Hz frequency setability
- Locking to external frequency standard
- Accuracy better than 1ppm over 15oC to 30oC
- Ageing better than 1 ppm over one year
- Low phase noise and low leakage -127dBm to +7dBm amplitude, 0.1dB steps
- Amplitude entry in dBm or µV / mV
- FM, Phase and AM modulation, internal or external
- Keyboard and rotary encoder control
In good working condition, images form part of the description.
