Description

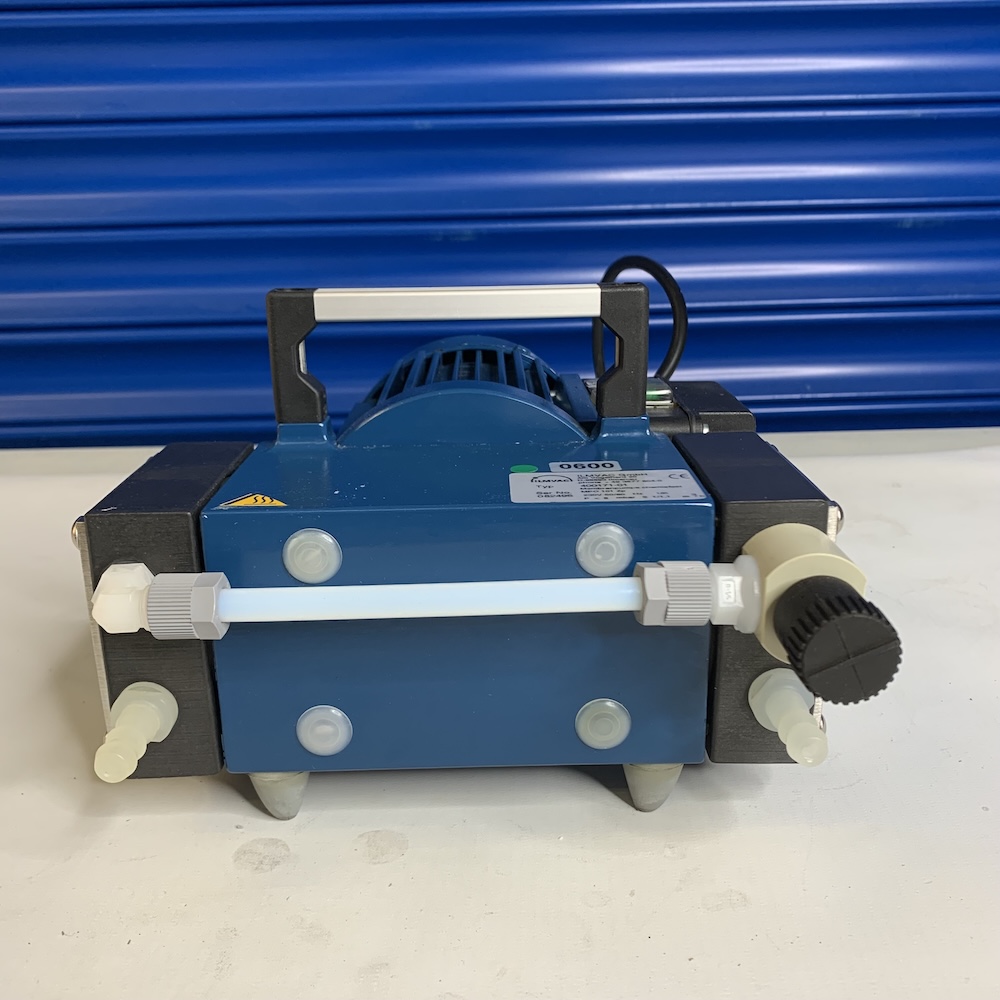

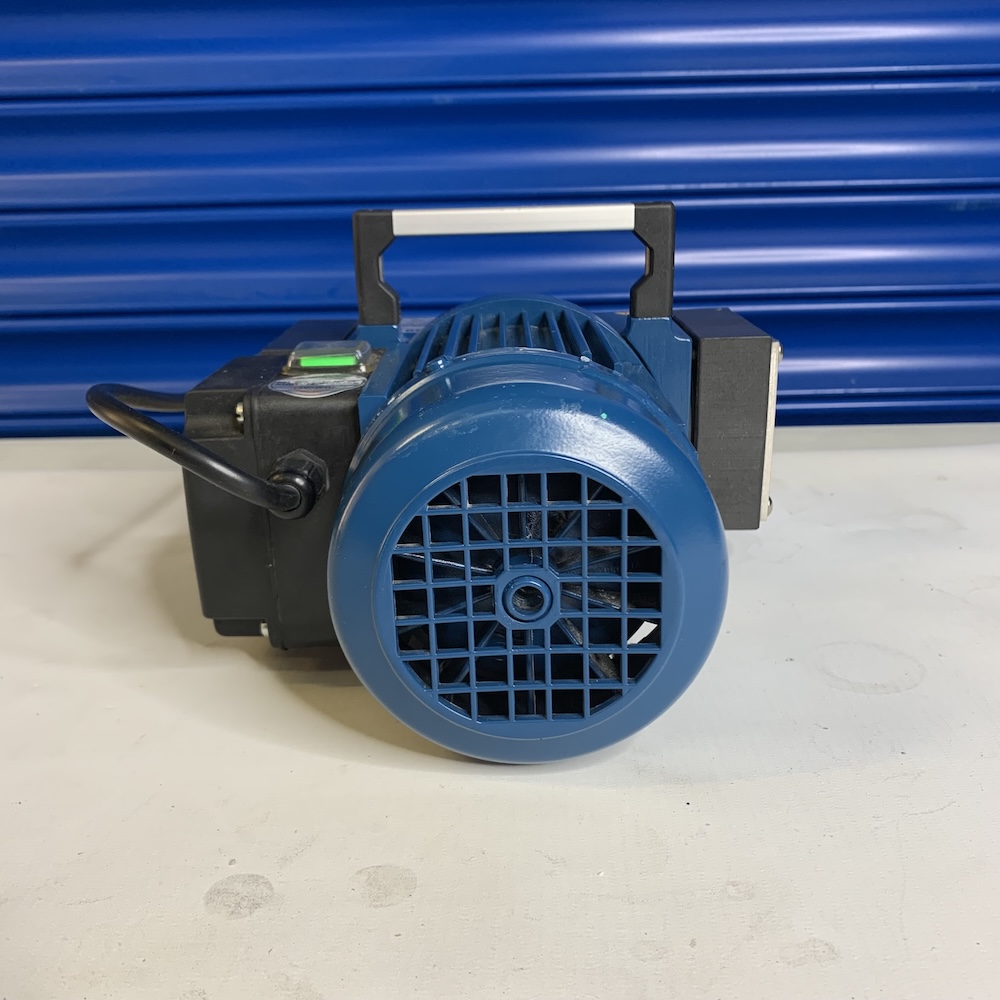

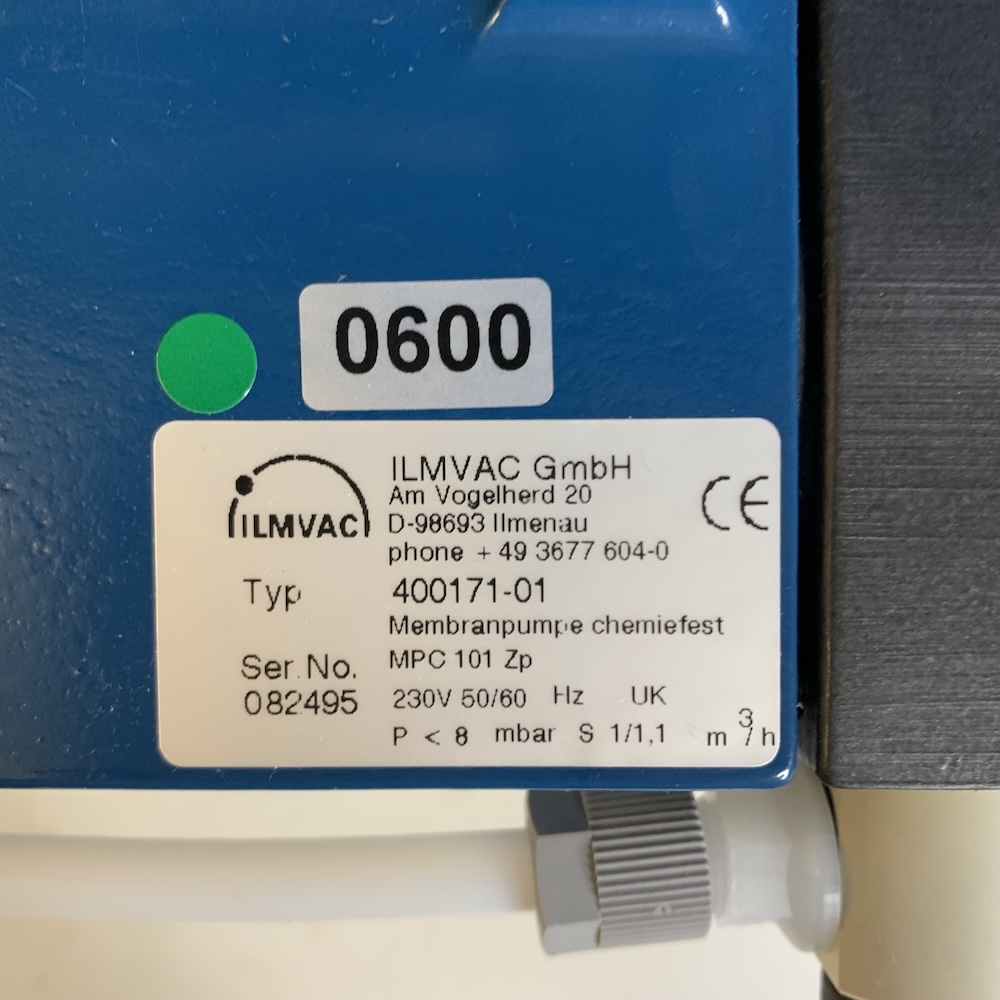

Vacuum Chemical Resistant Diaphragm Pumps Welch Ilmvac MPC 101 Z 400171-01
Diaphragm pumps for chemical applications – type MPC – are chemically compatible and resistant to aggressive solvents and acid vapors which are common in laboratories. The diaphragms are made out of PTFE. The pump and connection heads are carbon fiber reinforced. Their electrical conductivity prevents electrostatic charging and minimizes the risk of gas mixture igniting inside of the pump.

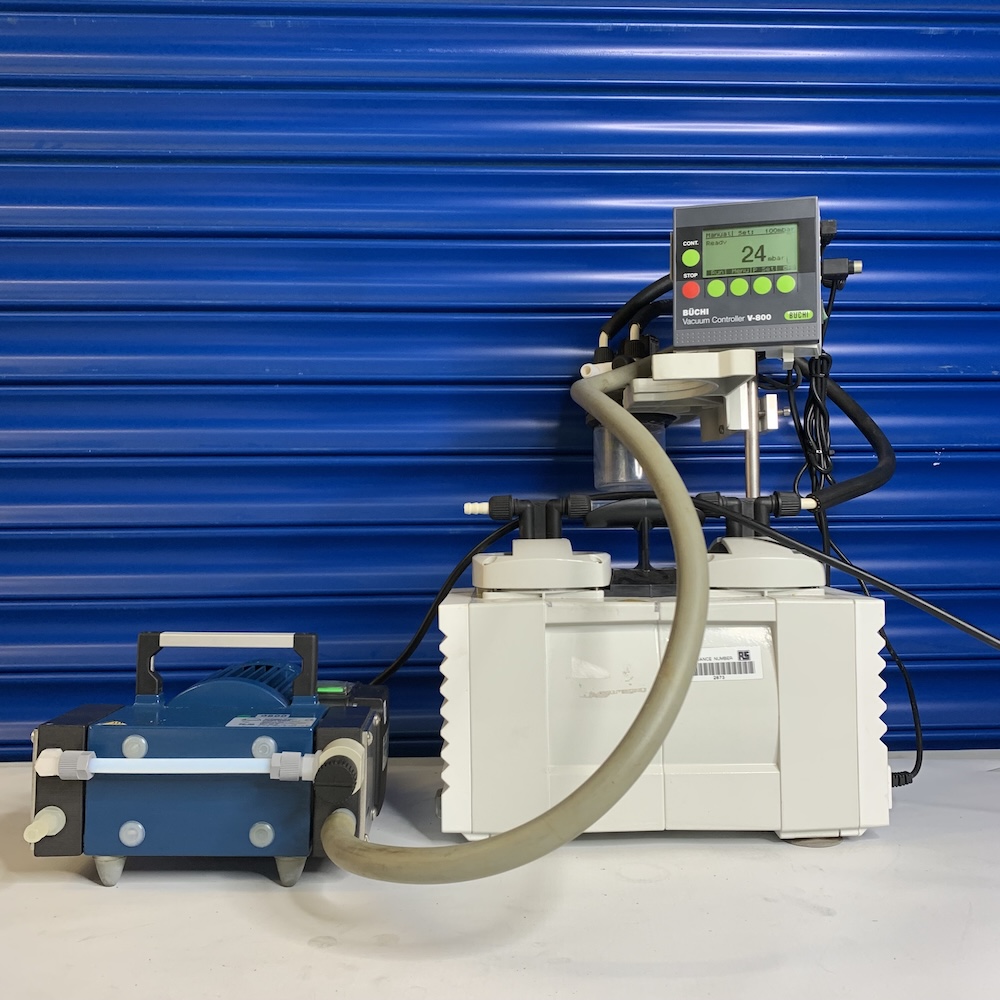

In good working condition, tested at 24mbar, BUCHI pump/controller not included. Otherwise images form part of the description.
Specification:
- Stages/heads: 2
- Pumping speed: 1.0 cum/hr
- Max vacuum: <8mbar
- Dimensions: 20 x 23 x 15cm (w x d x h)
- Weight: 6.5kg
- Electric Supply: 230V 50/60Hz
