Description

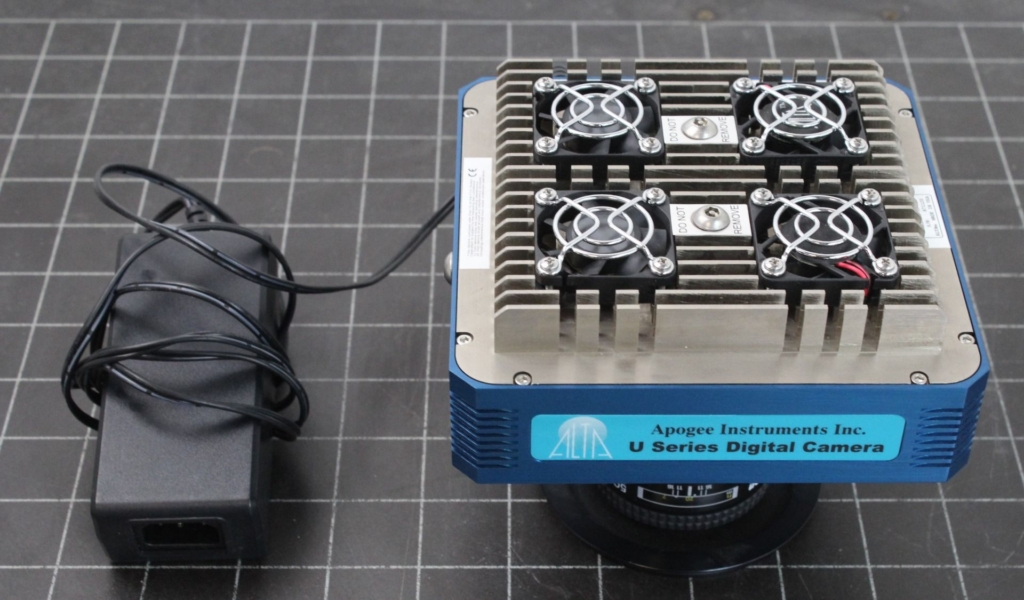

Apogee U9 Digital Camera
The Alta U9 uses a large format 6-megapixel Kodak Blue Plus sensor, ideal for applications requiring a large field of view with a smaller pixel.
• 3072 x 2048 array, 9 x 9 micron pixels
• 5 MHz 12-bit and 1 MHz 16-bit digitization
• 32Mbyte camera memory
• USB 2.0 interface: no plug in cards or external controllers
• Programmable, intelligent cooling to 50°C below ambient
• Binning up to 8 Horizontal x 2048 Vertical
• Subarray readout and fast sequencing modes
• Precision time delayed integration (TDI) and kinetics mode readout
• Programmable fan speed for low / zero vibration

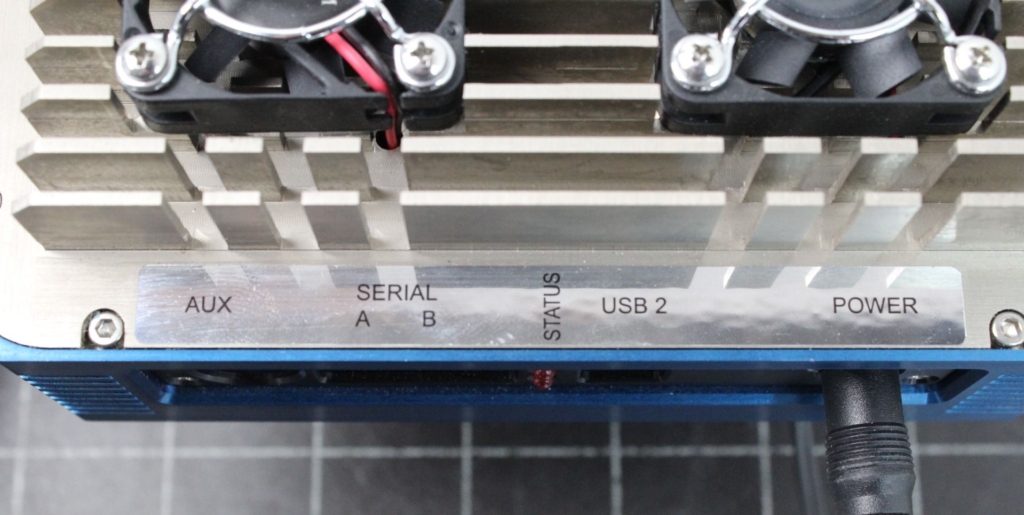

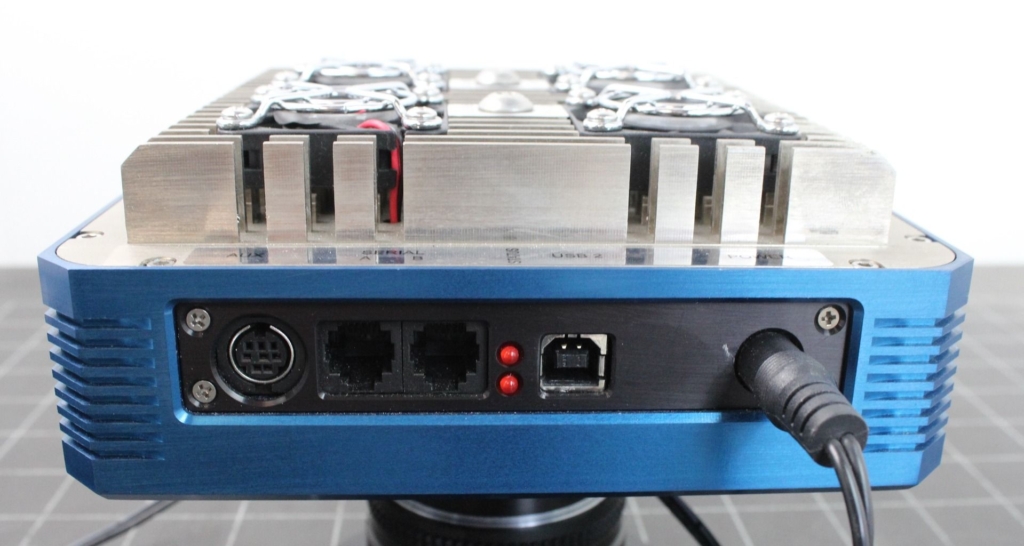

• Two serial port outputs for control of peripheral devices
• General purpose programmable I/O port
• External triggering and strobe controls
• Field upgradeable fi rmware
• Fused silica windows
• Runs from single 12V supply with input voltage monitor
• Compact enclosure
• Programmable status indicators

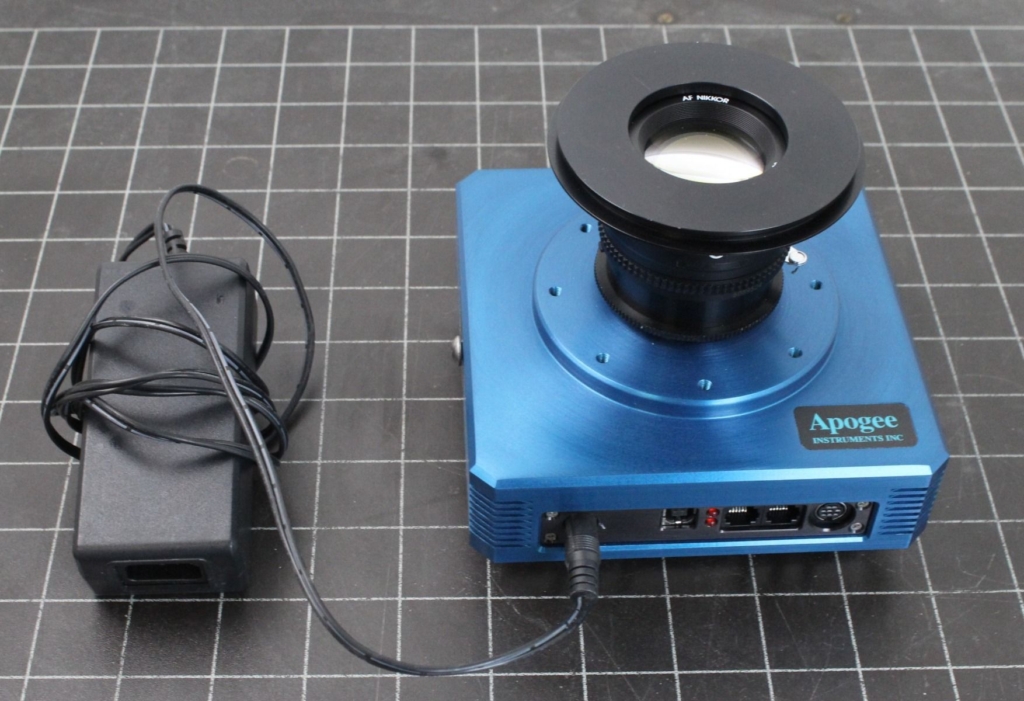

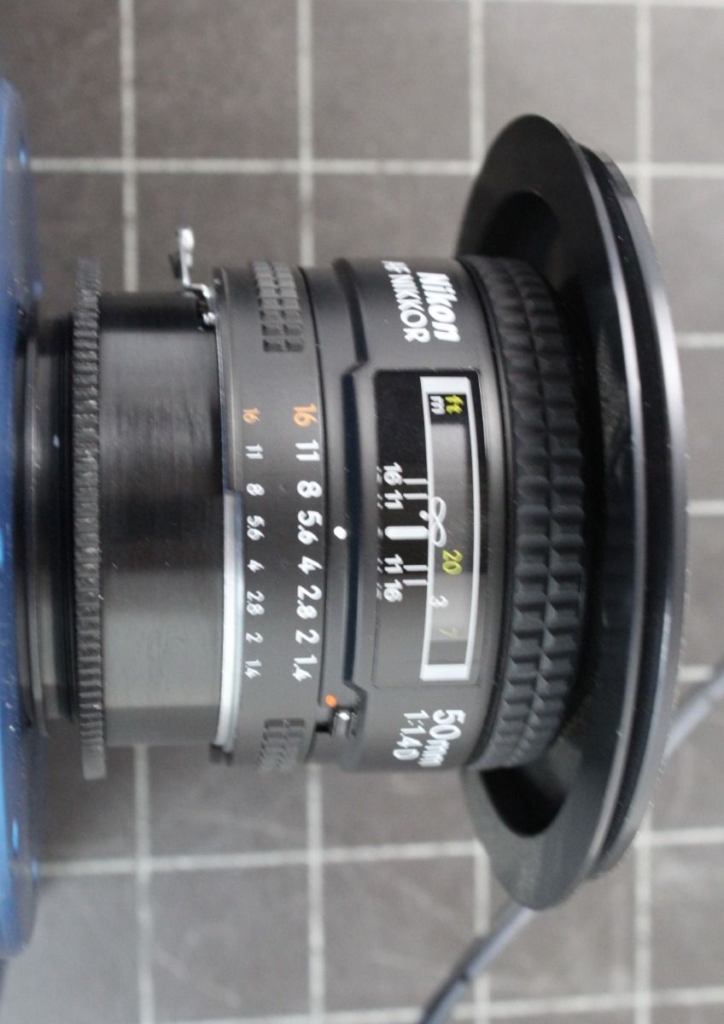

Fitted with Nikon AF Nikkor 50mm lens (F1.4)
Serial# A71120
