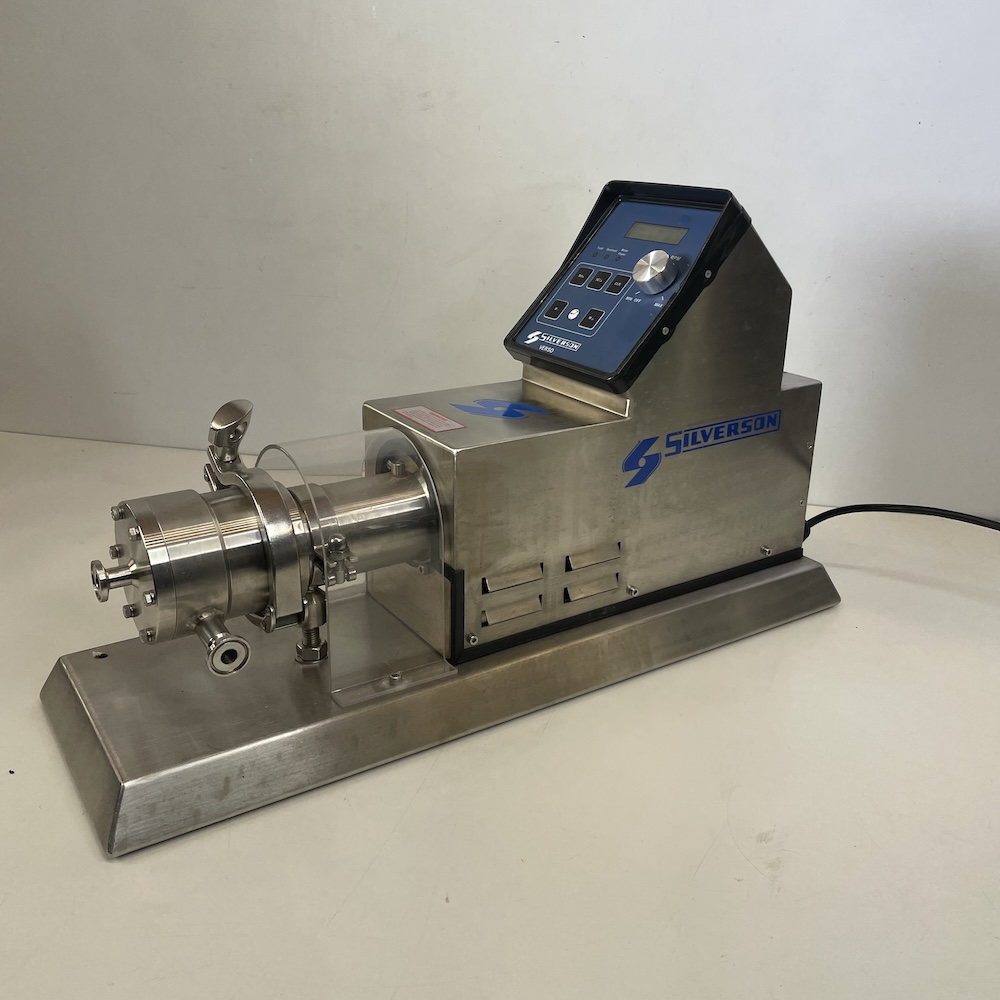

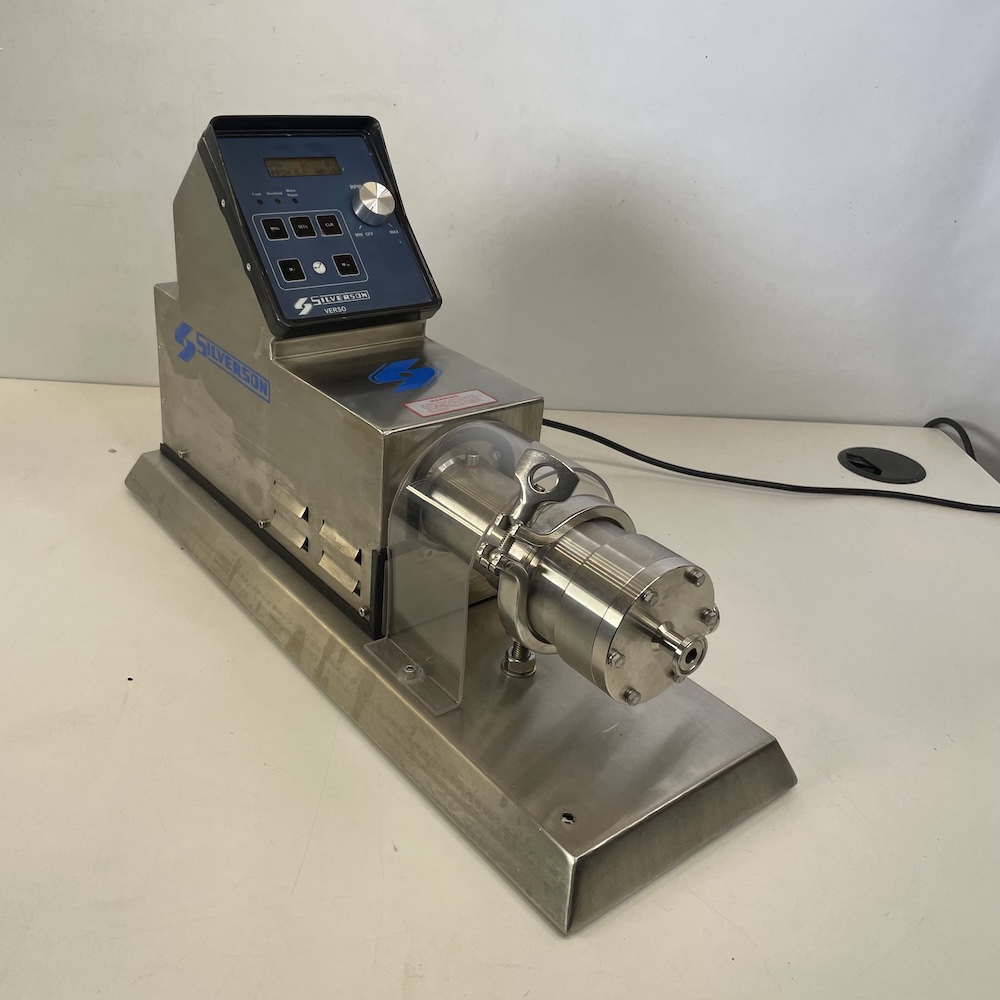

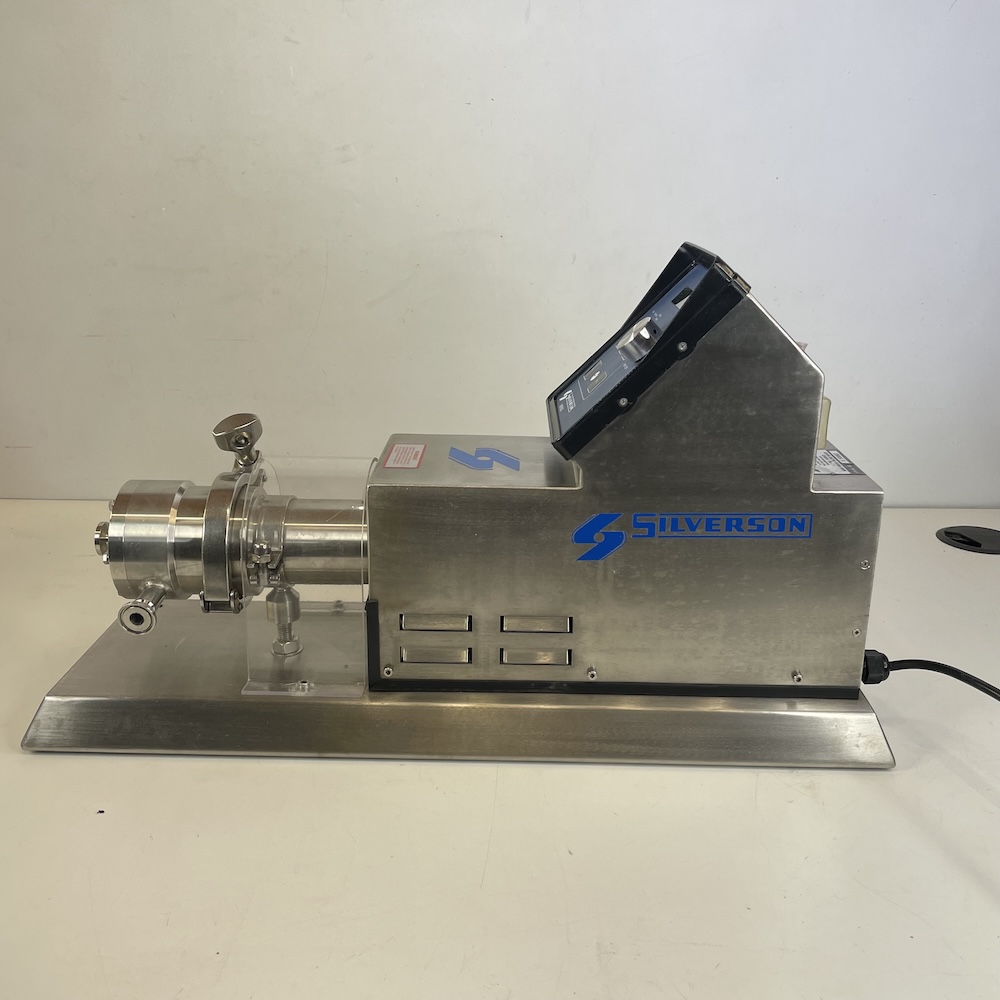

Silverson Verso Laboratory High Shear In-Line Mixer
The Silverson Verso Mixer is a versatile and compact benchtop in-line mixer designed for laboratory and pilot-scale applications. It offers efficient high-shear mixing, making it ideal for process development, research, and small-scale production. The mixer features a self-pumping design, ensuring continuous in-line operation while delivering uniform particle size reduction and rapid mixing. The work head provides precise control over mixing intensity, allowing for consistent results across a range of viscosities and formulations.
Features:

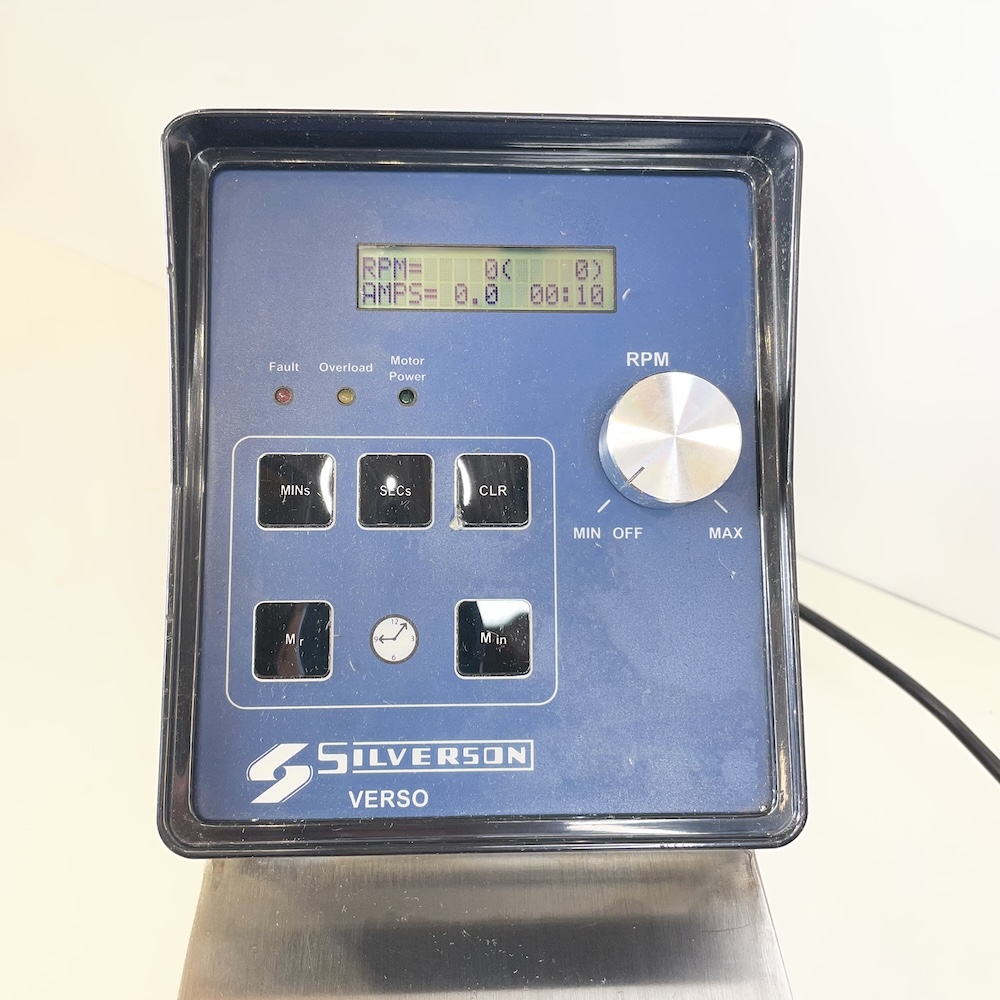

- Easy-to-read RPM display

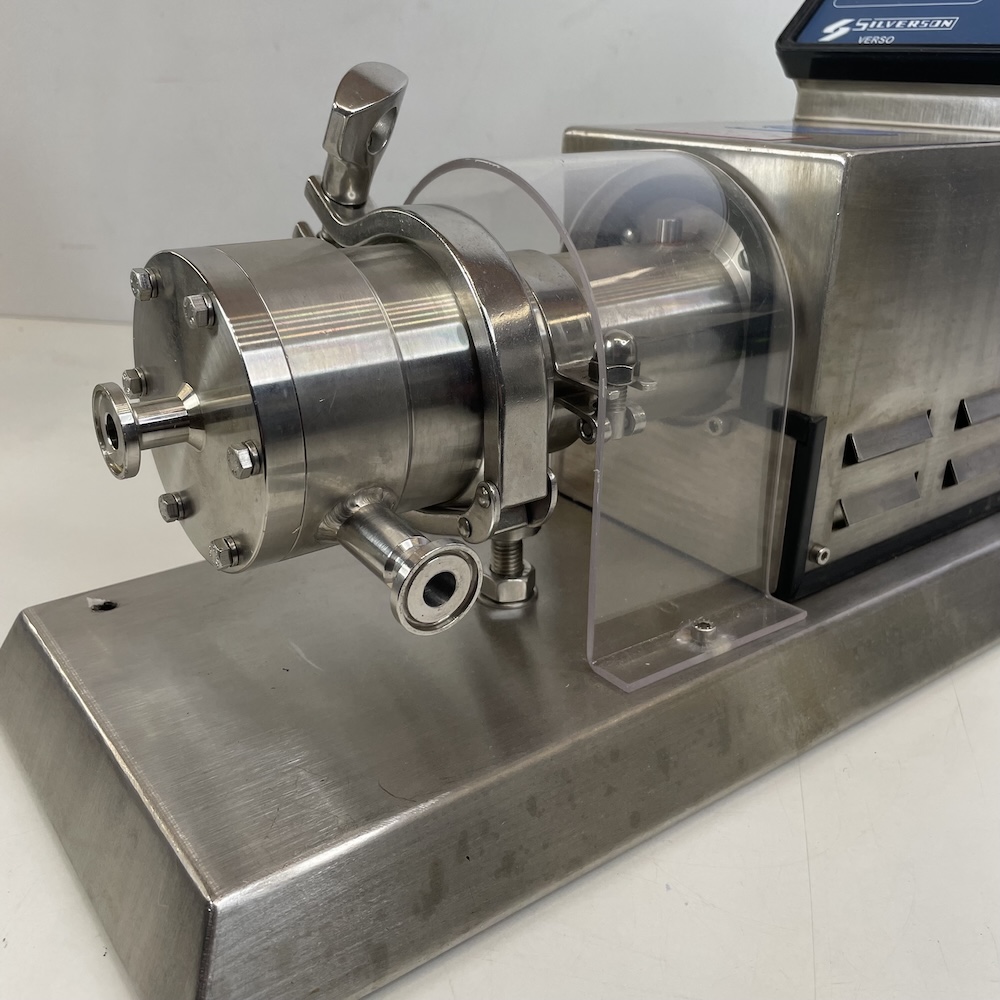

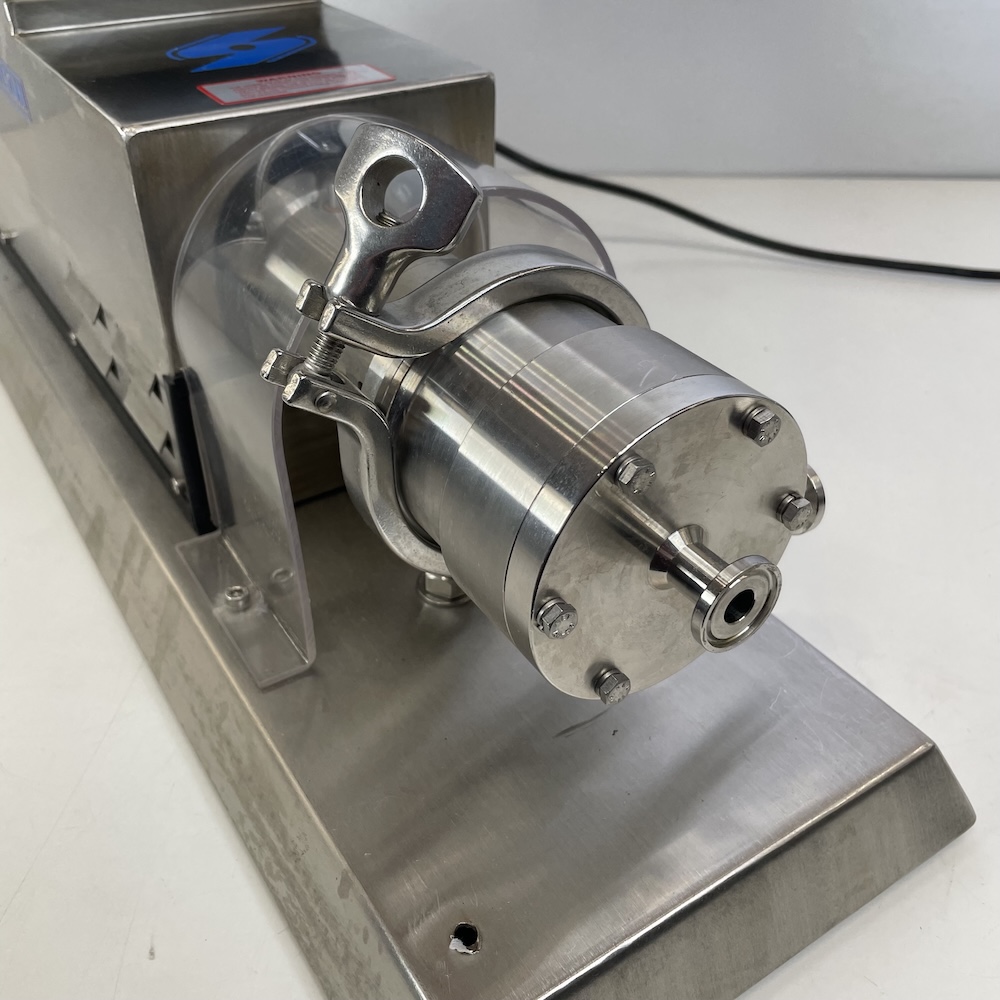

- Single stage work head
- Modular design allows easy disassembly for cleaning
- Self-pumping

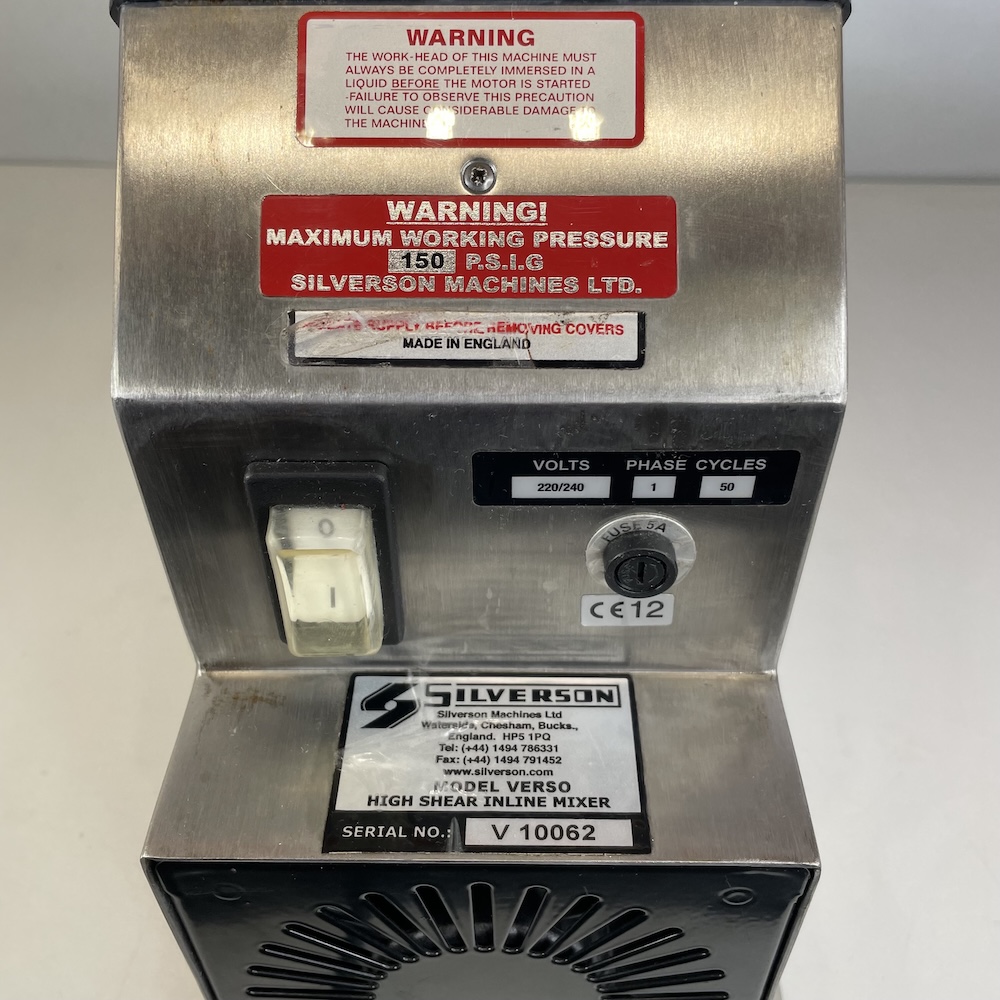

- Maximum operating pressure: 150psi
- 0.75” Tri-clamp inlet/outlet connections
- Single mechanical shaft seal
- 316L stainless steel construction
In very good operating and cosmetic condition, images form part of the description.
Specification
- Motor: 0.75 kW (1 hp) with variable speed control.
- Speed: Nominal maximum of 9,000 rpm.
- Capacity: Self-pumping, up to 2,400 liters per hour.
- Connections: 1/2” (or 0.75”) Tri-clamp inlet/outlet.
- Construction: 316L Stainless Steel wetted parts.
- Dimensions: 20 x 62 x 34cm (w x d x h)
- Weight: 20kg
- Electric supply: 240V 16A
