Description

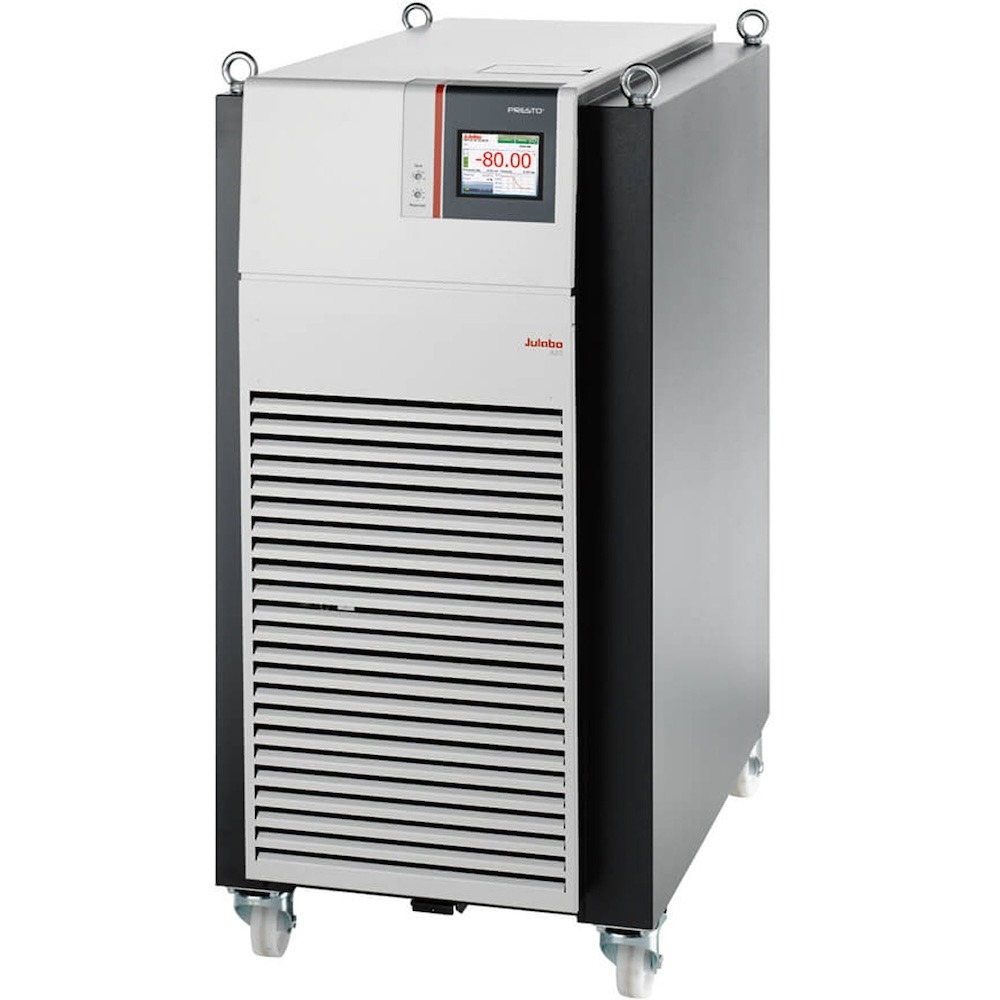

Julabo PRESTO A85 Process System 9420852.07
Powerhouses among the process system
High cooling capacities enable extremely low temperatures down to -85 °C possible. The high heating capacity, particularly with the A85t and the W85t, provides even more flexibility in the application.
The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems.

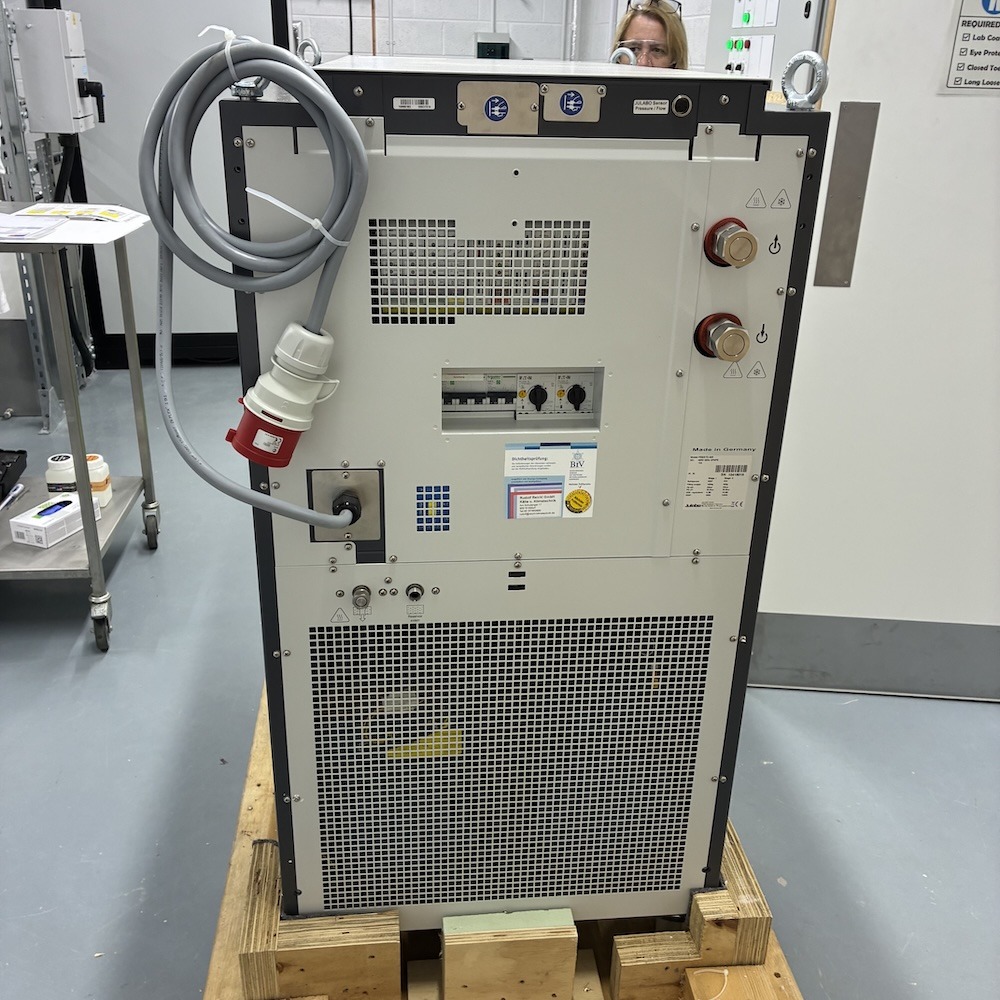

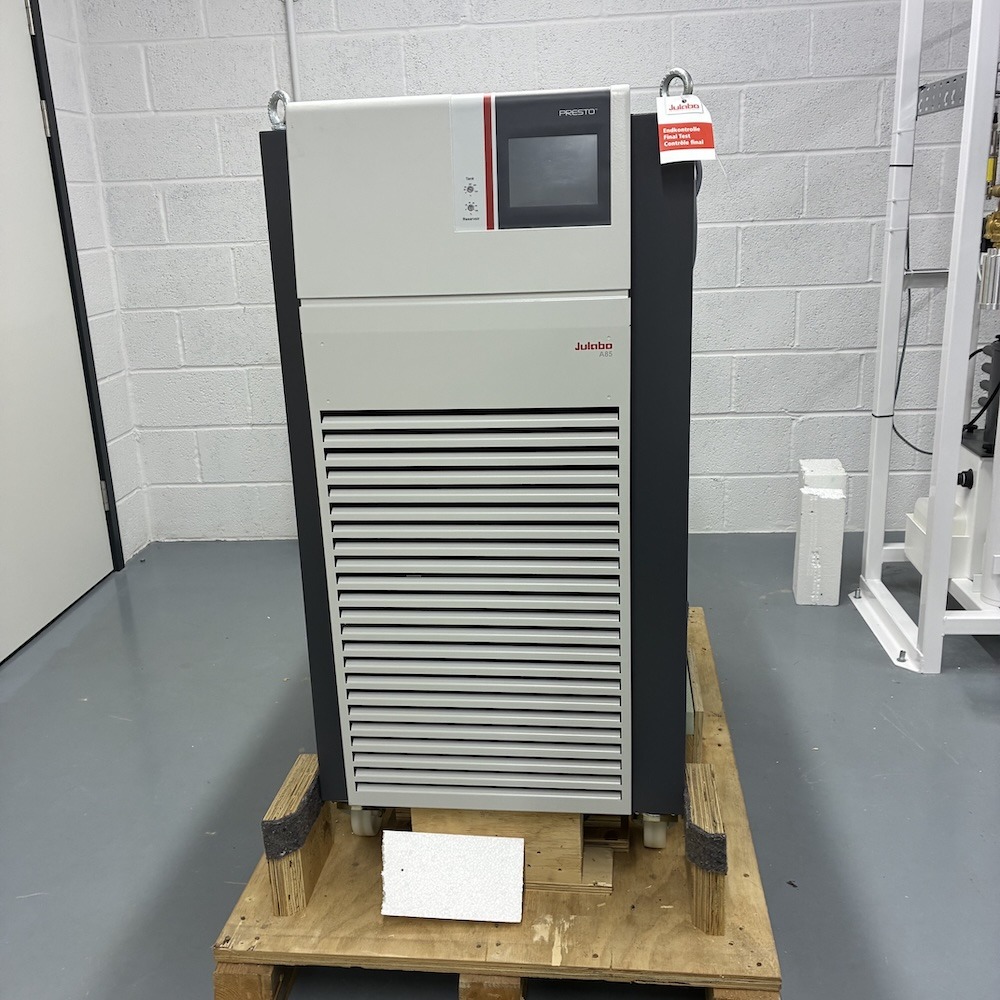

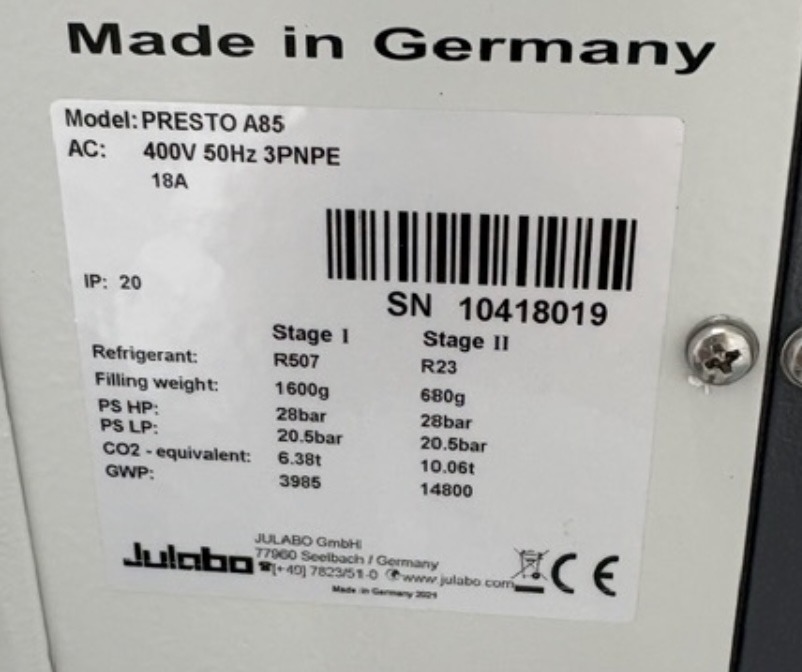

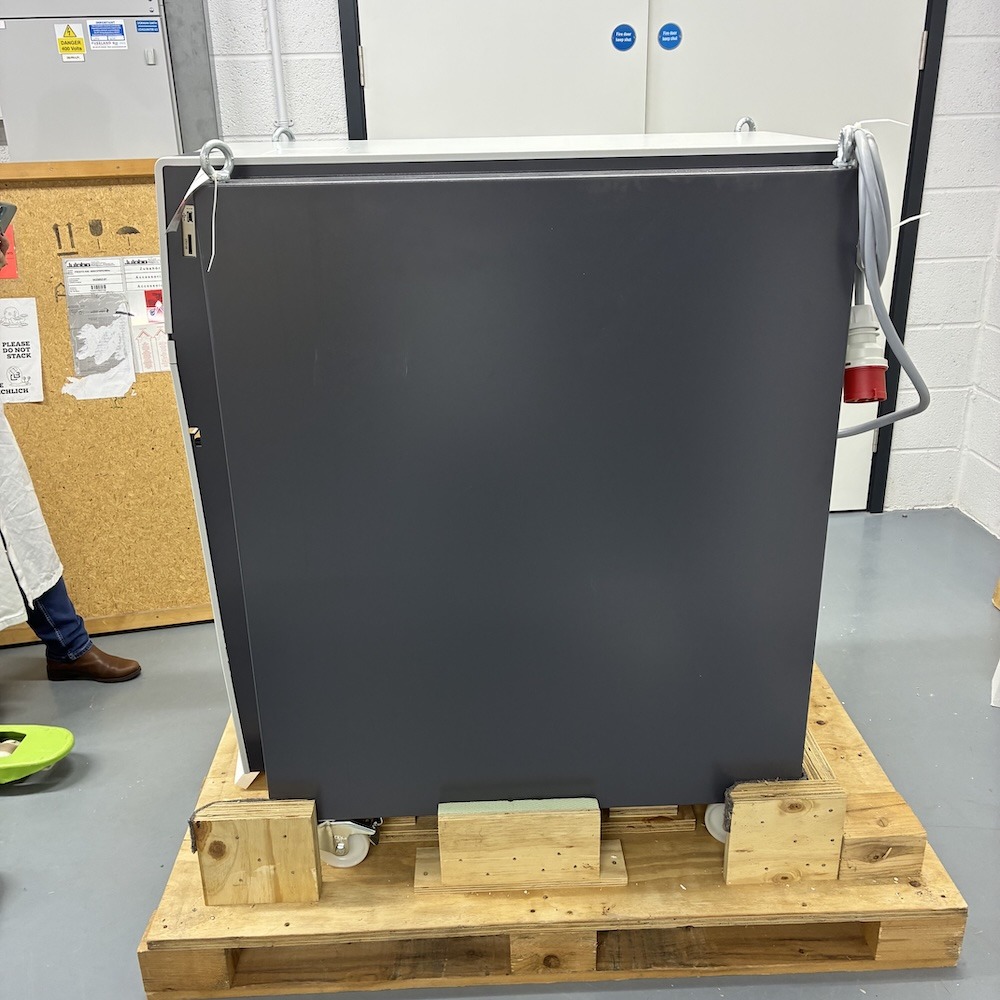

This PRESTO A85 has been used for a short project and returned to original packaging. Manufactured 202. Images form part of the description.
Specification
- Temperature range: -85 to 250˚C
- Resolution: 0.01˚C
- Internal expansion zone: 7L
- Minimal process volume: 9.5L
- Active heat exchanger volume: 5L
- Cooling capacity: 2.5kW at 20˚C
- Pump flow: 0-80L/min
- Pump pressure: 0.1 to 3bar
- Pump connections: M30 x 1.5 male
- Dimensions: 61 x 108 x 125cm (w x d x h)
- Weight: 365kg
- Electric supply 400V 3ph
