Description

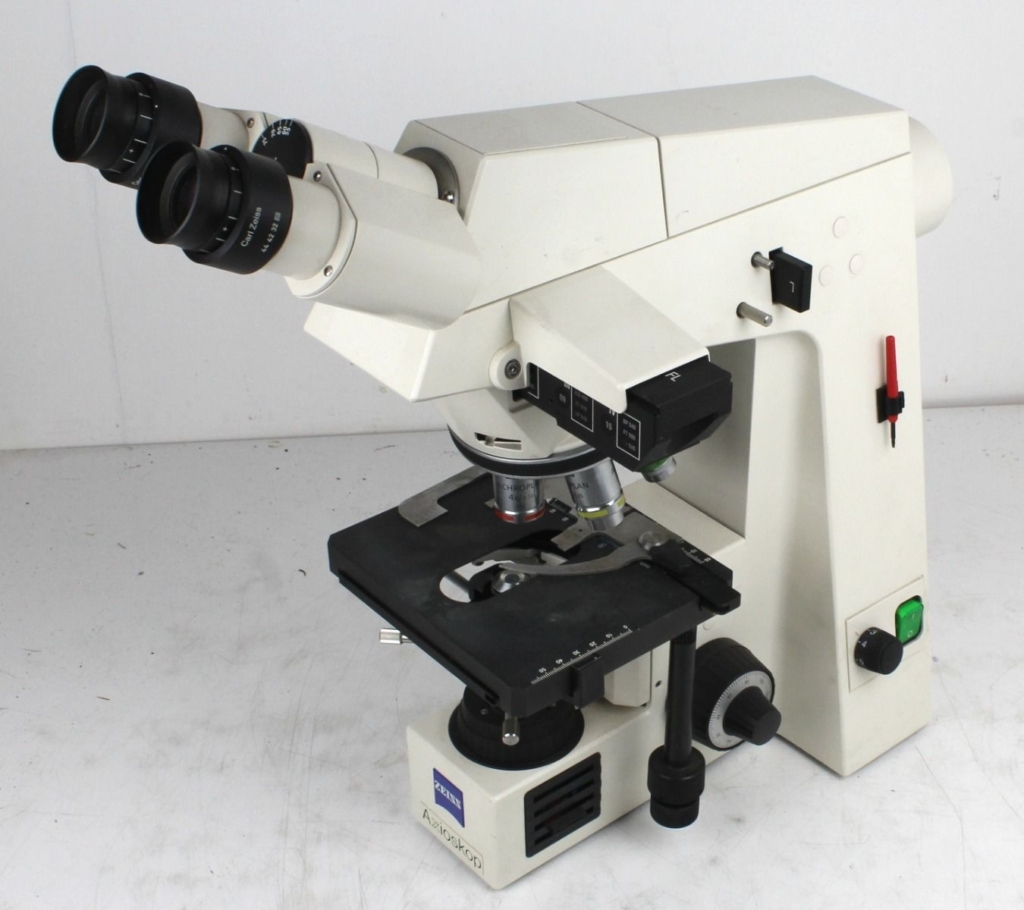

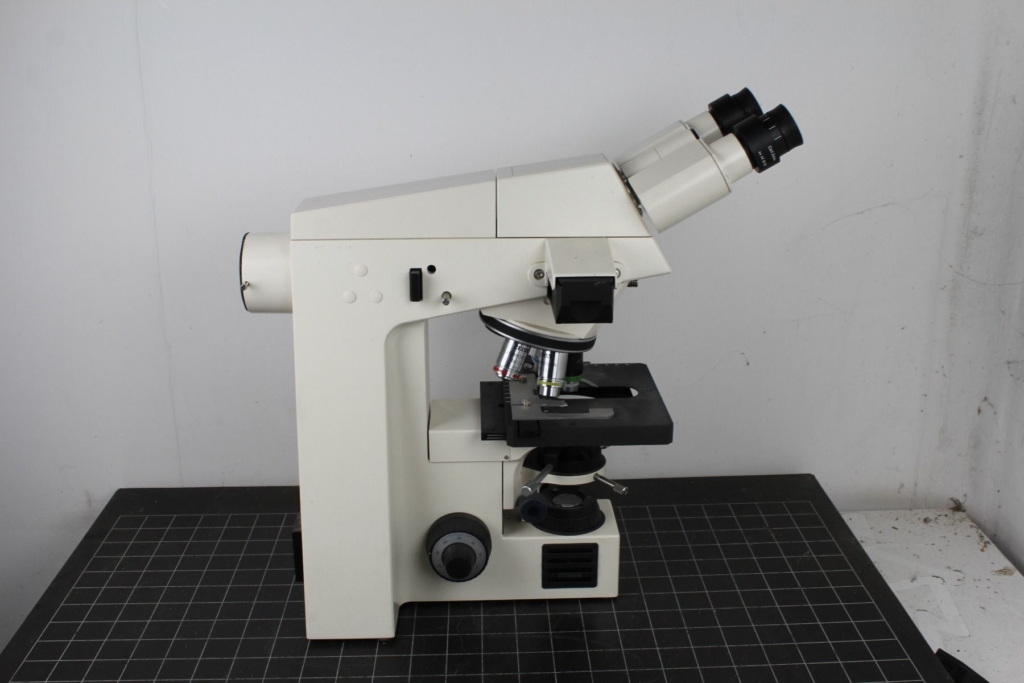

Zeiss Axioskop 20 Routine Microsocope 451487
Part# 45 14 87

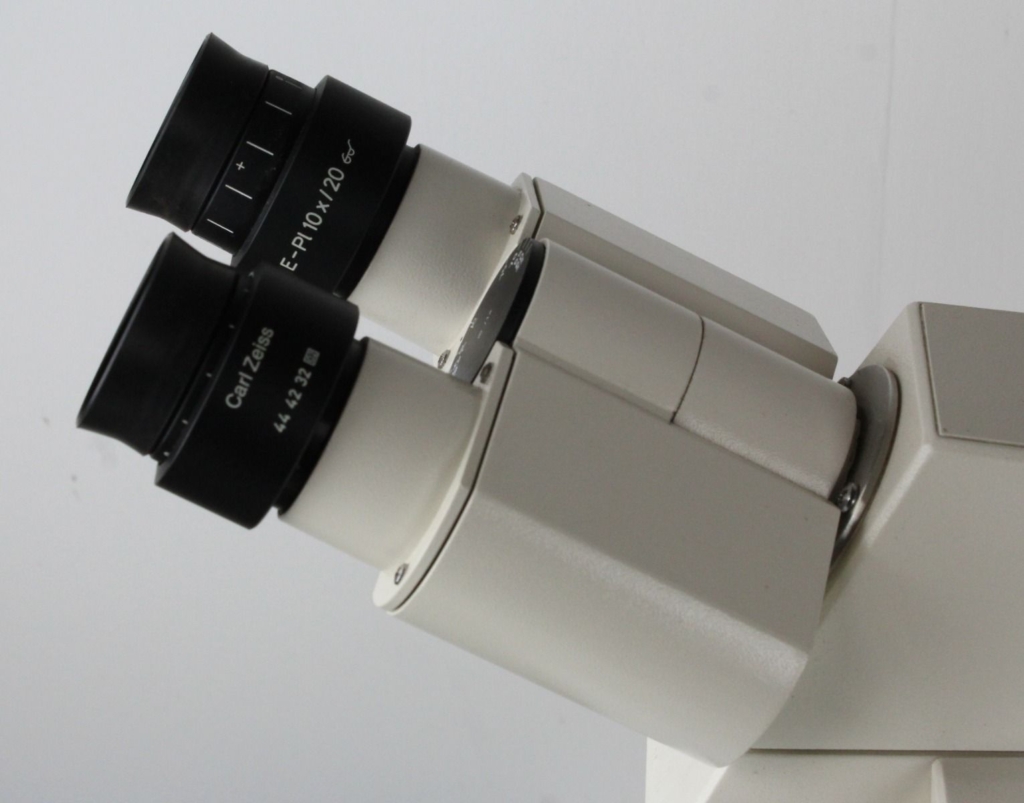

Binocular Tube fitted with Two E-Pl 10 x /20 eyepieces

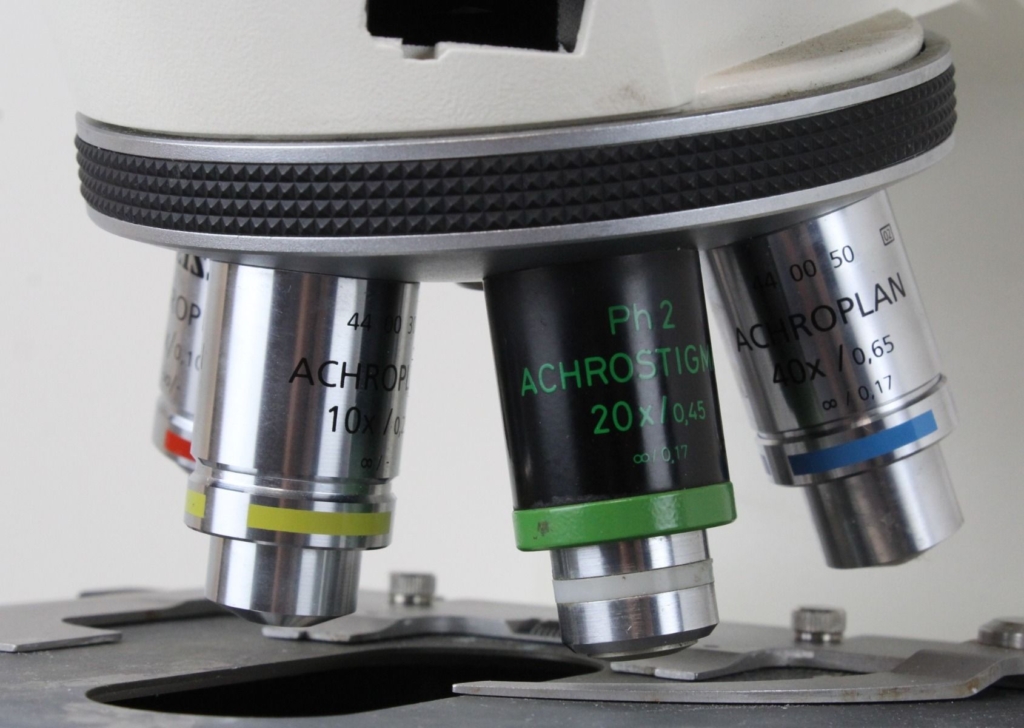

Nosepiece 6 position, fitted with 4
Objectives
Zeiss Achroplan 4x/0.10
Zeiss Achroplan 10x/0.25
Zeiss Achrostigmat Ph2 20x/0.45
Zeiss Achroplan 40x/0.65
Mechanical Stage 75 x 30R (453522-9901)
Specimen Holder with spring clip (473448)

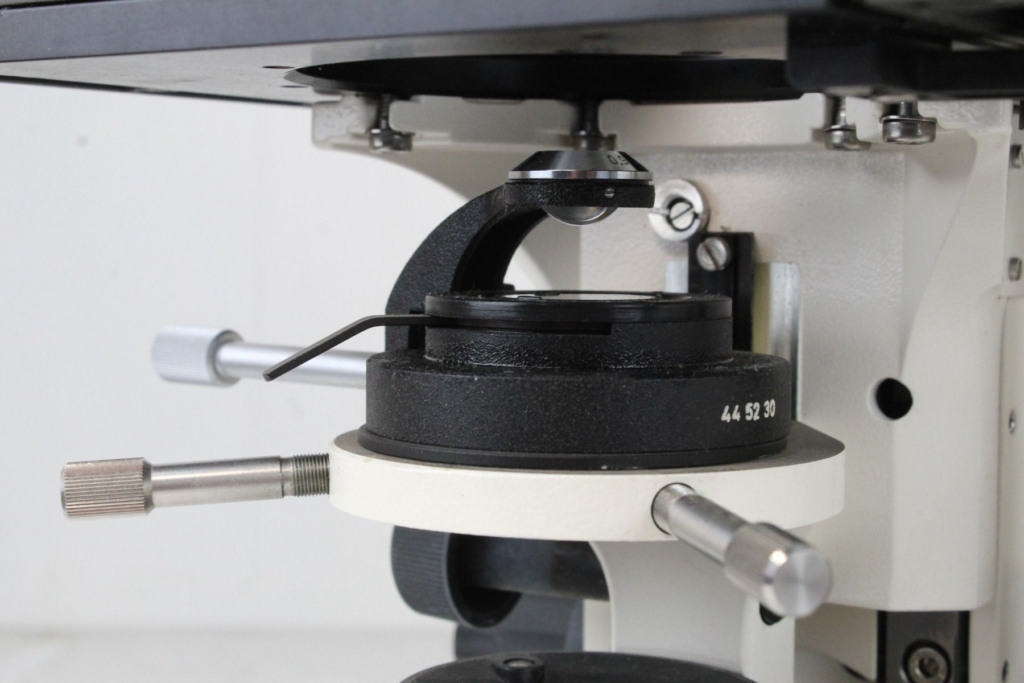

Brightfield condenser 0.9 with swing in front lens (44 52 30)

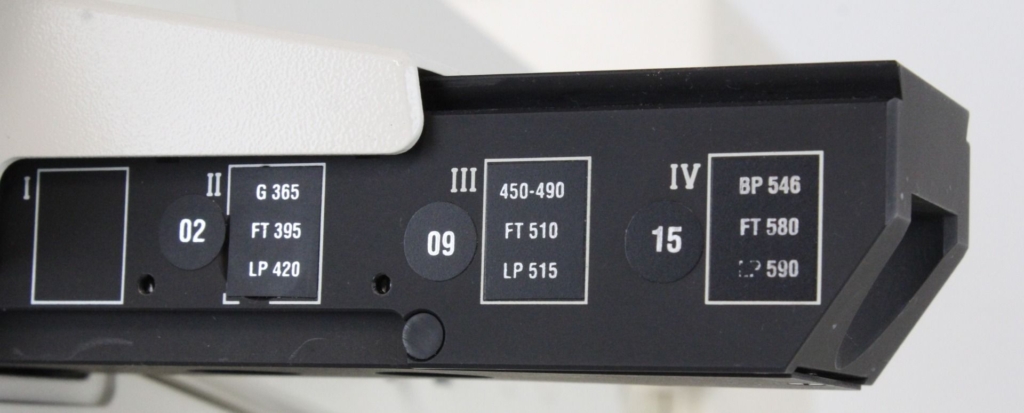

Reflector Slider 4FL (44 64 25) with 3 Filter Sets
Excitation UV-G365
Blue 450-490
Green H546

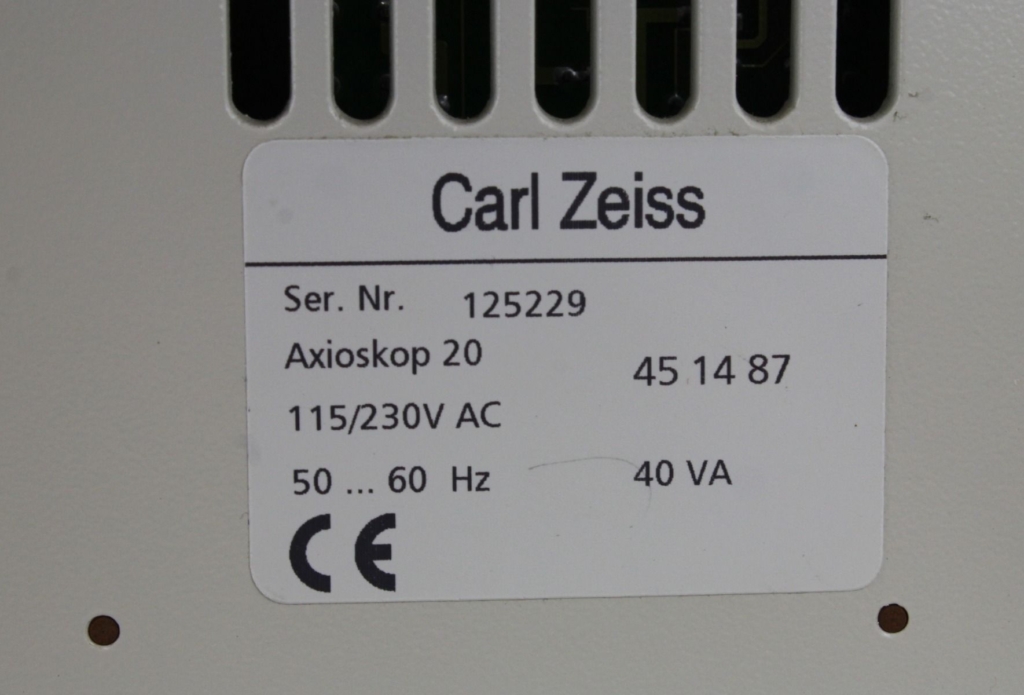

Serial# 125229
PDF Manual
Although set up to be a fluorescence microscope it is not supplied with the mercury lamphouse & power supply. Images form part of the description.
